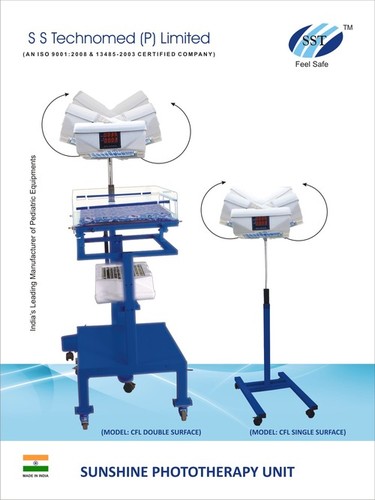

Phototherapy Unit

Get a Price/Quote

MOQ : 1 Unit

Phototherapy Unit Specification

Material
Metal, Plastic (for housing and attachments)

Frequency
50/60 Hz

Properties
Mobile, adjustable height, digital timer

Phase
Single Phase

Display Type
LCD digital timer

Suitable For
Clinic,Hospital

Weight
35 kg (approx, with stand)

Shape
Rectangular with curved lamp arrangement

Power
60 W

Dimension (L*W*H)
1200 x 600 x 1800 mm (approx)

Automation Grade
Semi-Automatic

Height
Adjustable (up to 1800 mm)

Application
Neonatal Jaundice Treatment

Use
Hospital, NICU

Accuracy
High accuracy for treatment duration

Function
Treatment of neonatal jaundice via phototherapy

Product Type
Laboratory Incubator

Treatment Type
Phototherapy (Blue LED/FL Tube)

Color Code
Blue and White

Power Source
Electric

Display
Digital LCD

Voltage
220-240 V AC

Safety Features
Overheat protection, fuse protection, arc shield

Height Adjustment
Manual/mechanical adjustment

Power Consumption
Low energy consumption

Arm Adjustment
Flexible arm for precise positioning

Number of Lamps
6 (High-intensity LED/Florescent tubes)

Lamp Life
> 20,000 hours (LED type)

Intensity
35-45 W/cm2/nm at 45 cm distance

Time Setting Range
0-9999 minutes

Lamp Source
LED or CFL lamps (variant dependent)

Mobility
Mounted on castor wheels with lock

Control Panel
Integrated with digital timer and indicator

Cooling System
Passive/Forced air ventilation

Phototherapy Unit Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
3 Days

Certifications
CE/ISO

About Phototherapy Unit

In the new born baby i.e birth to one month, Jaundice can pose a serious problem, because high level of the billirubin can permanently damage the brain. The indirect billirubin, which is not water soluble can be decomposed to a harmless metabolic, which is water soluble, does not cross blood brain barrier and is rapidly excreted in the bile and urine and so does not accumulate. This is achieved by exposing the infant to bright light ( approx. 4.5 micro watts/sq.cm/nm) in the range of 420 to 480 nm wave length.

About CFL Phototherapy
The CFL Phototherapy Unit occupies very little bed side space providing ease during observation. The unit is mobile, mounted on 4 castors i.e 2 with brakes & 2 without brakes. The base of the unit conveniently goes beneath a bed or a trolley and can also be adjusted with the warmer/Incubator.The Chokes are fitted at the base to decrease the heat generation in the tube unit thus giving an added protection to the unit.

Compatibility
The tube unit can be adjusted up/down by the mechanism provided in the pillar. Protection is provided against free fall of the unit by adding a big screw at the back, thus making it compatible to fit over an incubator or baby cot etc.

Baby Bed (Comes with undersurface Phototherapy Unit)
Baby bassenet comes with fold down / drop down panels and a big shelf. Facility of head down position on both sides is also given. Under surface phototherapy unit has 4 blue & 2 white CFL and is fitted at a distance of 300mm from baby bed (adjustment level is optional).

CFL Module
The lamp unit is made of light weight plastic, has 4nos of blue light tubes with higher intensity of light in therapeutic range and 2 nos of white light tubes. CFL tubes last five times longer than ordinary tube light, requires less frequent replacement. The unit is fitted with special mirror coated reflectors for better reflection. Also has fold up facility during inspection of neonates or storage and angle folding facility for using along with radiant warmer.

Heat Dissipation
A fan is provided at the top cover for efficient heat dissipation with concealed wiring inside the unit.

Optional Accessories

I.V. Stand (adjustable).
Digital hour meter with dual display of hours i.e. One for the total tubes usage & other for individual baby usage with reset facility.
Automatic voltage corrector with high & low voltage cut off.

Precision in Neonatal Care

This advanced phototherapy system delivers consistent, high-intensity light essential for the effective treatment of neonatal jaundice. Adjustable height, flexible arm, and targeted illumination ensure optimal phototherapy administration for infants, with minimal intervention needed from healthcare staff.

User-Friendly Digital Controls

The digital control panel comes with a highly accurate LCD timer, capable of being set from 0 to 9999 minutes. The integrated indicator and simple interface provide precise monitoring and control, facilitating safe and efficient operation during neonatal treatment sessions.

Safety and Mobility Combined

The unit incorporates essential safety features, including overheat protection, fuse protection, and an arc shield. Its sturdy frame with lockable castor wheels offers convenient mobility within clinical settings. Passive or forced air ventilation guarantees optimal lamp and system cooling throughout the treatment process.

FAQ's of Phototherapy Unit:

Q: How is the height and positioning of the phototherapy unit adjusted?

A: The phototherapy unit features manual or mechanical height adjustment, allowing the lamp assembly to be raised up to 1800 mm. Its flexible arm enables precise positioning over the patient, ensuring ideal light exposure for effective jaundice treatment.

Q: What is the process for operating the digital timer and control panel?

A: Operation is straightforward: use the integrated digital LCD control panel to set treatment time between 0 and 9999 minutes, monitor treatment progress, and view indications. The digital timer ensures accurate and consistent light exposure as prescribed for neonatal jaundice management.

Q: Where can this phototherapy unit be used effectively?

A: This unit is designed for use in NICUs, hospital wards, neonatal clinics, and pediatric healthcare facilities. Its mobility and adjustable features make it suitable for a variety of clinical environments across India.

Q: What safety features are included in the phototherapy unit?

A: Safety elements include overheat and fuse protection, an arc shield, and robust metal/plastic construction. The unit also utilizes a passive or forced-air cooling system to prevent overheating during prolonged use, ensuring both infant and operator safety.

Q: When should the lamps on this phototherapy device be replaced?

A: For units equipped with LED lamps, replacements are rarely needed as the lamp life exceeds 20,000 hours. Regular inspection and maintenance as per manufacturer's guidelines will ensure optimal performance and timely lamp replacement when required.

Q: How does this phototherapy unit benefit neonatal care?

A: By delivering targeted, high-intensity light therapy, the unit helps break down excess bilirubin in newborns, reducing jaundice duration and the risk of complications. Adjustable settings and precise controls allow clinicians to personalize treatment, improving safety and outcomes for infants.
